Wall-mounted Lithium Battery Lifepo4 Power Storage System 100Ah 200Ah 5Kwh 10Kwh 16Kwh

Name: Wallmounted Lithium Battery Lifepo4 Power Storage System 100Ah 200Ah 5Kwh 10Kwh 16Kwh
Brand: Amosolar
Price: 680.00 USD

Wholesale Wall-mounted Lithium Battery Lifepo4 Power Storage System 100Ah 200Ah 5Kwh 10Kwh 16Kwh from china suppliers

Battery Type : Lithium Ion

Model Number : AMO5.12-15.36K-W3

Brand Name : Amosolar

Output Power Range : 5~10 kWh

System Type : Wall-mounted

Type : All-in-one, Li-Ion/lithium/lifepo4

Communication Port : CAN, RS232, RS485

Protection Class : IP65

Grid connection : Off grid, Hybrid grid

Product name : Lithium Iron Phosphate Lifepo4 Battery

Application : Home Appliances;House Use

Capacity : 100Ah 200Ah 300Ah;5KWH 10KWH 15KWH

Cycle life : 6000 Times

Voltage : 51.2V

Warranty : 5years

Keywords : Battery Lithium Lifepo4

Certification : CE/RoHS/UN38.3/MSDS

OEM/ODM : Accepatable

MOQ : 2 pieces

Price : $680.00 - $1,750.00/pieces

Contact Now

Wall-mounted Lithium Battery Lifepo4 Power Storage System 100Ah 200Ah 5Kwh 10Kwh 16Kwh

Specification

PERFORMANCE SPECIFICATIONS
MODEL	AMO 5.12K-W3	AMO 10.24K-W3	AMO 15.36K-W3
Nominal Voltage	51.2V
Capacity(Ah)	100AH	200AH	300AH
Rated Energy (KWH)	5.12KWH	10.24KWH	15.36KWH
Usable Energy(KWH)	4.1KWH	8.2KWH	12.29KWH
Max.Charge/Discharge Current(A)	100A
Voltage Range (Vdc)	45.6-56.16V
Communication	RS232, CAN, RS485
Cycle Life	≥6000cycles@25℃，80%DOD
Design Life	≥10 Years (25℃)
MECHANICAL SPECIFICATIONS
Weight( Approx) (KG)	48.45kg	98kg	140.7kg
Dimension(W/D/H)(mm)	520470141.5mm	800590142mm	856820176mm
lnstallation Mode	Wall Mount
lPGrade	lP65
SECURITY AND CERTIFICATION
Safety(Pack)	UN38.3,MSDS
Safety(Cell)	UN38.3,MSDS,IEC62619,CE,UL1973,UL2054
Protection	BMS, Breaker
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature(℃)	Charge:0°C~55℃; Discharge: -20°C-60℃
Altitude (m)	≤2000
Humidity	≤95%(Non-condensing)

COMPANY PROFILE

Amosolar is established in 2008 and located in Hefei city,Anhui province,China. We have 4

production bases with 3Gw production capacity.

Our main prodcuts are solar panels and solar batteries with International certificates

ISO, IEC,CE,TUV ,INMETRO, SONCAP,RETIE.

Amosolar always pay more attend to clients' requests. OEM, customization and special

quantities are all available. We would like to be your best one-stop solar system provider.

QUALITY AS THE GENE OF PRODUCTS

Quality is the corner stone for the growth of the company and our compromise to the clients. We apply a rigorous system of control procedures following the guidelines of TUV requisites and implement a comprehensive range of tests before, during and after theproduction.

RIGOROUS SYSTEM OF CONTROL

Strict quality testing standards for long-life performance

Conducted under Amosolar quality assurance best practices, our stringent performance and durability testing let us guarantee you decades of worry-free operation.
* Solar Material Control * Production Control * After Production

PACKAGING & DELIVERING

All components are packed in separate cartons, and then firmed by wooden box. Make sure the solar system are 100% protected during transportation

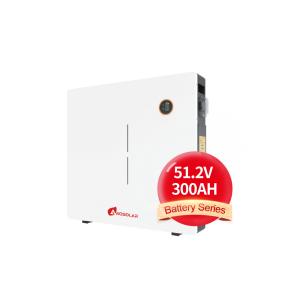

Wall-mounted Lithium Battery Lifepo4 Power Storage System 100Ah 200Ah 5Kwh 10Kwh 16Kwh Images
